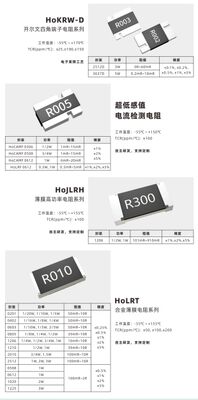

Automotive-Grade Encapsulated Alloy Resistor

Core Definition & Structure

Key Electrical Characteristics

Typical Applications

• New Energy Vehicles:

  Current sensing for BMS (Battery Management System), OBC (On-Board Charger), DC/DC converters, motor controllers.
• Conventional Vehicles:

  Engine ECU, ABS/ESP, lighting power supply, transmission control.
• Charging Equipment:

  Power detection in charging stations / piles.

Main Brands & Models

• International:

  Vishay WSL/WSK, Panasonic ERJ, ROHM LRM.
• Domestic:

  Fenghua AMG/AMS, Huade MSU/MSHL, HoYao HoCG2512.

Electronic Component: Vishay WSL Automotive-Grade Alloy Resistor

Selection Guidelines

• Calculate power using P = I²R and apply ≥30% derating (mandatory in high-temperature environments).
• Prefer 4-terminal (Kelvin) structure for μΩ-level high-precision sensing.
• For high anti-sulfur / anti-vibration requirements, confirm coating process (e.g. ALD Al₂O₃) and terminal material.
• Must obtain AEC-Q200 test reports and IATF16949 certification.

Difference from Standard Alloy Resistors

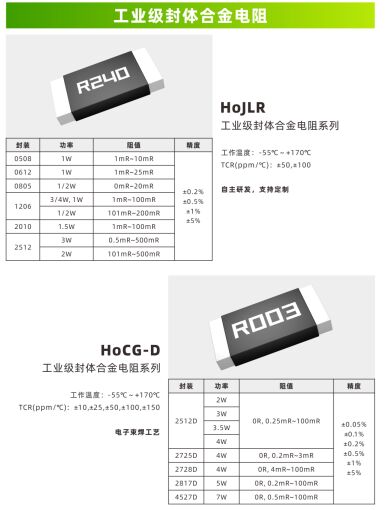

Industrial-Grade Encapsulated Alloy Resistor

1. Core Definition & Structure

• Standard: -40℃ ~ 125℃
• High-temperature types: -55℃ ~ 170℃

  Moisture sensitivity level: MSL 1.

  Compliant with RoHS / halogen-free.

  Reliability tests per JESD47, IEC 60068 (temperature cycling, thermal shock, vibration, humidity, solder heat resistance).

  Quality system: mostly ISO9001; high-end lines also support IATF16949.

  AEC-Q200 is not mandatory (can be customized upon request).

2. Key Electrical Characteristics (Typical)

3. Typical Applications

• Industrial Power:

  Current sensing & overcurrent protection for UPS, switching power supplies, inverters, DC/DC modules.
• Automation & Drives:

  Servo drives, PLC, robot controllers.
• New Energy & Energy Storage:

  Energy storage PCS, PV inverters, charging station modules.
• Telecom Equipment:

  Base station power supplies, data center server power supplies.

4. Main Brands & Models

• International:

  Vishay WSL2512, Panasonic ERJ‑8EN, KOA Speer RK731.
• Domestic:

  Fenghua AMG/AMS, HoYao HoCG2512, FOSAN FMH, Huade MSU.

5. Core Selection Steps

• Calculate rated current using

  I=RP​​

  Apply power derating: ≤70% (≤50% recommended in high temperature).
• Accuracy & TCR:
  • Precision current loop: ±0.5% / ±10~25 ppm/℃
  • General protection loop: ±1% / ±50 ppm/℃

• Package & mounting:

  2512 / 3920 / 5931 are common in industry.

  Reserve thermal pads on PCB.

  4-terminal preferred for high-precision sensing below 1 mΩ.
• Environment:

  For humid / coastal / sulfur-containing environments, choose anti-sulfur terminals + full encapsulation.

  For high-vibration equipment, confirm vibration resistance and mounting method.

6. Industrial vs Automotive-Grade Encapsulated Alloy Resistor

7. Purchasing & Verification Points

• Obtain complete datasheet + reliability test reports (temperature cycling, humidity, solder heat resistance data).
• Confirm RoHS, halogen-free compliance. Anti-sulfur requirements must be specified and tested separately.
• Power derating curve must match actual PCB thermal conditions to avoid long-term overheating failure.
