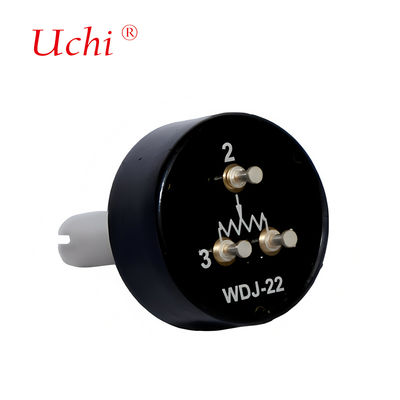

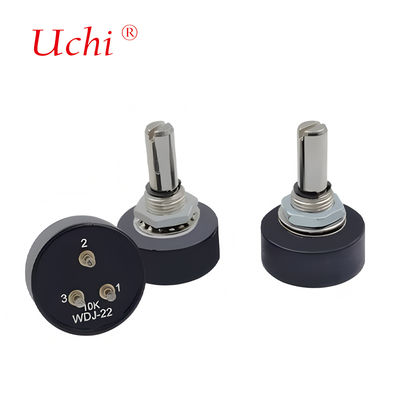

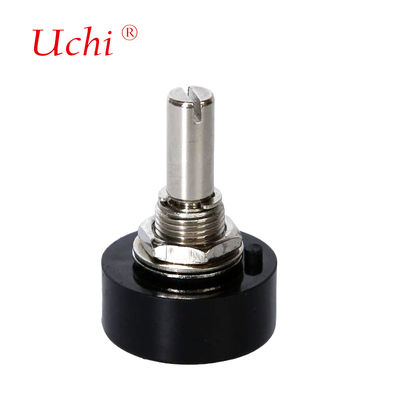

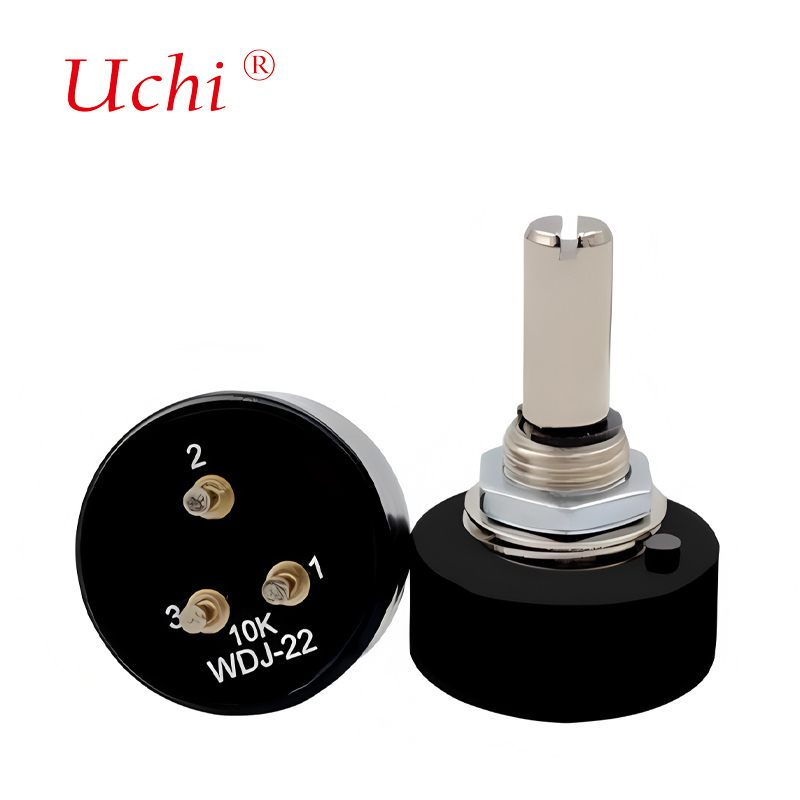

WDJ-22 Conductive Plastic Potentiometer 10k Angular Displacement Sensor
Detail produk:
| Tempat asal: | Dongguan ， Guangdong, Cina |
| Nama merek: | Uchi |
| Sertifikasi: | SMC |
| Nomor model: | WDJ-22 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 100 pcs |
|---|---|
| Harga: | dapat dinegosiasikan |
| Syarat-syarat pembayaran: | T/T,paypal,Western Union,MoneyGram |
| Menyediakan kemampuan: | 50000000pcs per bulan |
|
Informasi Detail |
|||
| Perlawanan: | 1kΩ~10kΩ | Toleransi Resistensi: | ± 10% |
|---|---|---|---|
| Akhiri perlawanan: | <3Ω | Taper Perlawanan: | B |
| Linearitas independen: | ± 0,5% | Peringkat Daya: | 0,5W(70℃)0W(120℃) |
| Kebisingan Puncak (CRV): | <2%Rn | Kekuatan dielektrik: | 1000V 1 menit |
| Perjalanan Penyesuaian: | 90°120°200° 240° 300° 340° | Resolusi: | Pada dasarnya tidak terbatas |
| Tegangan input maksimum: | 200VDC | ||
| Menyoroti: | 10k conductive plastic potentiometer,angular displacement sensor potentiometer,WDJ-22 precision potentiometer |
||
Deskripsi Produk
The WDJ-22 long-life angle sensor conductive plastic potentiometer is designed for accurate angle measurement applications. Featuring conductive plastic construction with precious metal brushes, this sensor delivers low-noise, smooth signal output for precise displacement measurement in applications such as joystick control rods and servo systems.
- Servo installation type for convenient use and installation
- 360° continuous rotation with 340° effective angle (customizable)
- Wide temperature range: -40℃ to +125℃
- Essentially infinite resolution
- High linearity: ±1% to ±0.15%
- Exceptional lifespan: 5 million cycles
- Output smoothness: <0.1%
- Rear terminal customization available
| Electrical Specifications | |
|---|---|
| Resistance Range | 1KΩ-10KΩ |
| Resistance Tolerance | ±10% Standard |
| End Resistance | <3Ω |
| Independent Linearity | ±0.5% |
| Power Rating | 0.5W(70℃)0W(120℃) |
| Peak Noise (C.R.V.) | <2%Rn |
| Dielectric Strength | 1000V 1minute |
| Adjustment Travel | 90°120°200° 240° 300° 340° |
| Insulation Resistance | 10M |
| Resolution | Essentially infinite |
| Maximum Input Voltage | 200VDC |
| Environmental Specifications | |
|---|---|
| Storage Temperature Range | -60℃~+125℃ |
| Operating Temperature Range | -60℃~+125℃ |
| Temperature coefficient | 500ppm/℃ |
| Load Life | 70℃ 1,000h ΔR/R≤±10% |
| Rotational Life | 1,000,000 times, ΔR/R≤±7% |
| IP Range | IP25 |
| Soldering Heat Resistance | (350℃ 3S)ΔR/R≤±2% |
| Temperature Cycle | (-25℃,+85℃ 30min/each,5 cycles) ΔR/R≤±10% |
| Vibration | 10-55Hz, 1.5mm amplitude, 3.directions ΔR/R≤±5% |
| Mechanical Specifications | |
|---|---|
| Mechanical Travel | 220° 320° 360° |
| Shaft Torque | 25~35gf*cm |
| Mounting Nut Torque | 15Kgf*cm |
| Shaft Runout | 0.15mm |
| Shaft End Play | (shaft length 30 mm)0.15mm |
| Shaft Radial Play | 0.15mm |
| Shaft Strength (push) | 125 N (12.75 kgf) min. |
| Shaft Strength (tensile) | 125 N (12.75 kgf) min. |
| Hardware | Washer, Lockwasher, Nut |
The WDJ-22 series angle sensor is ideal for applications requiring precise displacement measurement, including:
- Automotive servo systems
- Engineering machinery
- Aerospace devices and missile systems
- Aircraft radar antennas
- Injection molding machines
- Woodworking machinery
- Printing machines
- Electronic rulers
- Robotics
- Engineering monitoring systems
- Computer-controlled sports equipment
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
We are a factory offering direct pricing with professional technical support.
Samples are available upon request after order placement.
We accept OEM/ODM orders with flexible requirements.
Delivery varies by quantity and model, with urgent requests accommodated when possible.
We provide comprehensive 24-hour support for all products.
