WH3012P 30mm 45mm Stereo Dual Sliding Potentiometer B10K Travel Sliding Potentiometer
Detail produk:
| Tempat asal: | Dongguan ， Guangdong, Cina |
| Nama merek: | Uchi |
| Sertifikasi: | SMC |
| Nomor model: | WH3012P |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 100 pcs |
|---|---|
| Harga: | dapat dinegosiasikan |
| Syarat-syarat pembayaran: | T/T,paypal,Western Union,MoneyGram |
| Menyediakan kemampuan: | 50000000pcs per bulan |
|
Informasi Detail |
|||
| Resistensi Total: | 10KΩ±20% | Taper Perlawanan: | A, B,C,D,E,MN,RD, W, |
|---|---|---|---|
| Maks. Tegangan Operasi: | Lancip Linier B :AC 200 V~DC / V | Nilai Daya: | Unit tunggal: Lancip linier B:0,2W, Lancip lainnya : 0,05W Unit ganda: Lancip linier B:0,1W, Lancip |
| Kebisingan Geser: | Kurang dari 100 mV | Resistensi isolasi: | Lebih dari 100 MΩ pada DC 250 V |
| Tahan tegangan: | 1 menit pada AC 300 V | Resistansi sisa: | Ketentuan. 1~2 :Kurang dari 10 Ω |
| Kesalahan Geng (Unit Ganda): | -40 dB ~ 0 dB ± 3dB | ||
| Menyoroti: | 30mm stereo sliding potentiometer B10K,45mm dual sliding potentiometer with warranty,travel sliding potentiometer for precision control |
||
Deskripsi Produk

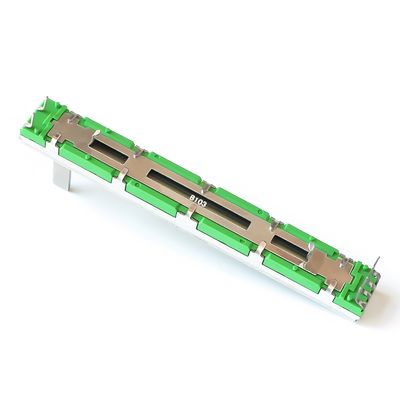

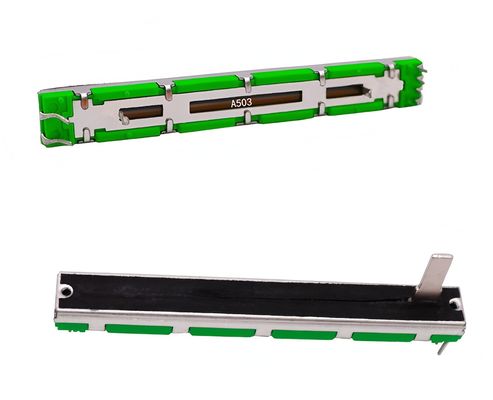

The WH3012P is a high-precision stereo dual sliding potentiometer featuring a 60mm travel range. This sliding resistor uses a resistance wire wound around insulation material with a sliding film contact point to regulate circuit resistance. Ideal for amplifiers, filters, and other electronic devices requiring precise resistance adjustment.
- Total length: 75mm (7.5cm)
- Width: 9mm (0.9cm)
- Thickness: 6.5mm (0.65cm)
- Handle height: 15mm (1.5cm), width: 4mm (0.4cm)
- Stroke length: 60mm (6cm)
- Pin configuration: 4-2 pins
- Resistance: A10K
- Channel: Dual channel
- Precision adjustment with smooth sliding operation
- High accuracy for sensitive electronic circuits
- Simple yet durable construction
- Wide resistance adjustment range
- Versatile applications in amplifiers, filters, and oscillators
| Parameter | Value |
|---|---|
| Total Resistance | 10K Ω±20% |
| Resistance Taper | A, B, C, D, E, MN, RD, W |
| Max. Operation Voltage | Linear Taper B: AC 200V~DC/V Other Tapers: AC 150V~DC/V |
| Rated Power | Single unit: Linear taper B: 0.2W, Other tapers: 0.05W Dual unit: Linear taper B: 0.1W, Other tapers: 0.025W |
| Sliding Noise | Less than 100mV |
| Insulation Resistance | More than 100MΩ at DC 250V |
| Withstand Voltage | 1 minute at AC 300V |
| Residual Resistance | Term. 1~2: Less than 10Ω Term. 2~3: Less than 10Ω |
| Gang Error (Dual Unit) | -40dB ~ 0dB ± 3dB |
| Parameter | Value |
|---|---|
| Total Sliding Travel | 60.0mm ± 0.5mm |
| Operating Force | 10~100gf |
| Sliding Stopper Strength | 5.0Kgf.cm Min. |
| Push-Pull Strength | 3.0Kgf.cm Min. at 5-10 sec |
| Number of Detents (Click) | 1C (Center Detent), 7C, 11C, 21C, 41C |
| Resistance to Soldering Heat | Solder dip: Preheating to 100℃ in 1 min, 260±5℃ for 5 sec Manual Soldering: Less than 300℃ for under 3 sec |
| Sliding Life | 10,000 cycles (Min.) |
This linear slide potentiometer is widely used in audio equipment, mechanical control systems, and instrumentation. Its reliable performance and straightforward design make it a preferred choice for electronic engineers and manufacturers.
