The MZ32 series is a positive temperature coefficient (PTC) thermistor-type
Detail produk:
| Tempat asal: | Dongguan, Guangdong, Tiongkok |
| Nama merek: | UCHI |
| Sertifikasi: | UL.VDE,SGS,REACH,CQC,CSA.ISO.ROHS,CUL |
| Nomor model: | FSM6-E50 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1000 buah |
|---|---|
| Harga: | dapat dinegosiasikan |
| Kemasan rincian: | dalam jumlah besar |
| Waktu pengiriman: | 5-7 HARI |
| Syarat-syarat pembayaran: | T/T, Paypal, Western Union, Uang gram |
| Menyediakan kemampuan: | 5000.000.000PCS Per Bulan |
|
Informasi Detail |
|||
| Arus Perjalanan: | 360 mA | Tegangan Operasi: | 6V~240V |
|---|---|---|---|
| Media pemanas: | PTC Keramik | voltase: | 220V |
| Waktu Pemulihan: | ≤60 detik | kemasan: | kemasan busa |
| Arus maksimum: | Bervariasi menurut model, biasanya hingga beberapa ampere | Jenis Sensor: | Perlindungan Motor Tiga Fase |
| Peringkat Tegangan: | Vrms 220V | Tegangan maks: | Vrms 270V |
| panjang kabel: | 620mm | putus tegangan: | 700 V |
| Menyoroti: | PTC thermistor temperature sensor,MZ32 series thermistor,positive temperature coefficient thermistor |
||
Deskripsi Produk

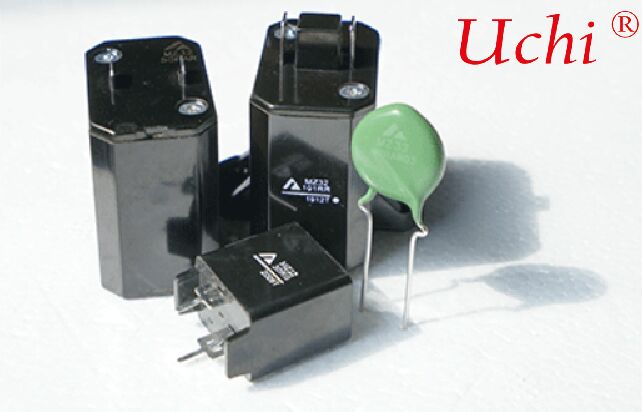

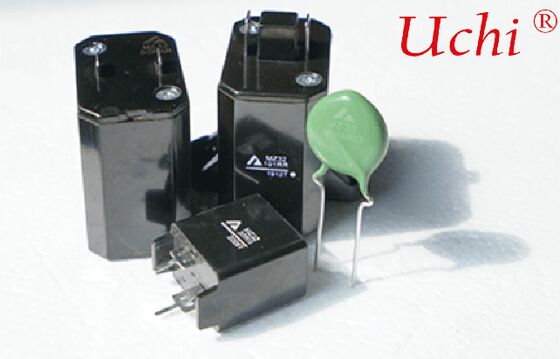

MZ32 Inrush Current Suppression Series (PTC Thermistor)
Product Overview
The MZ32 series is a positive temperature coefficient (PTC) thermistor inrush current suppressor. It is specially designed for surge peak current at the moment of power-on in high-power circuits, protecting rectifier bridges, power semiconductors, filter capacitors and fuses from overcurrent impact. It features dual functions of current limiting + self-recovery.
Working Principle
It maintains low resistance at room temperature, which can slowly charge large-capacity capacitors and suppress inrush current during power-on;
As the current rises, the component heats up and its resistance increases sharply, entering a high-resistance current-limiting state;
After the surge disappears or power is cut off, the temperature drops and the resistance automatically returns to a low value for repeated use, with the characteristics of a self-recovering fuse.
Product Features
✅ High-power suppression: Specially applied to suppress power-on inrush current of AC-DC power supplies, inverters, transformers and motor inductive loads;
✅ High voltage resistance: AC 120V～500V, covering mainstream voltage for industrial and consumer electronics;
✅ Wide resistance range: 10Ω～1000Ω, available for selection according to load matching;
✅ Stable and reliable: Ceramic substrate with flame-retardant packaging, low drift during long-term operation;
✅ Self-recovery: No replacement required, automatic reset after fault elimination, low maintenance cost;
✅ Multiple structures optional: A chip type, B housing type and C coating type, adapting to different installation spaces.
Typical Applications
High-power switching power supplies, industrial inverters, UPS;
Compressor and motor start-up for home appliances (air conditioners, refrigerators, washing machines);
New energy equipment and charging pile power modules;
Magnetizing inrush current suppression for inductive loads such as transformers and reactors;
Medical and communication power supplies, as well as various large-capacity capacitor input circuits.
Typical Core Parameters
Withstand Voltage: AC 220V / 380V / 500V (optional)
Resistance: 20Ω / 50Ω / 100Ω (@25℃)
Steady-state Current: 3A～15A (depending on model)
Curie Temperature: Approx. 125℃
Package: Insulated housing / epoxy coating, UL94 V-0 flame retardant grade
Selection Guidelines
The higher the power supply power and capacitor capacity, the smaller the resistance and the larger the steady-state current specification shall be selected;
Common model for 220VAC, 1–2kW power supply: MZ32-50Ω/8A;
Common model for 380VAC, 3–5kW power supply: MZ32-100Ω/10A.
