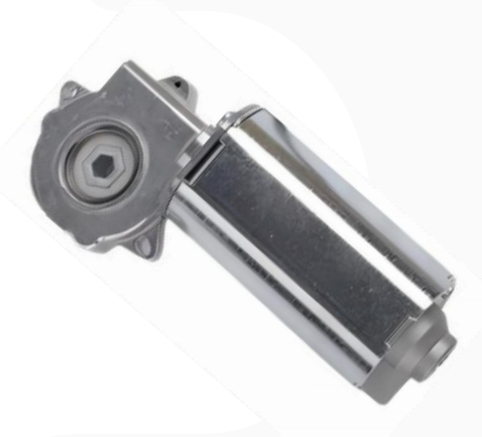

MT007 Electric Lifting Desk Motor Rapid Response Silent Smooth Operation
Detail produk:
| Tempat asal: | Dongguan China |
| Nama merek: | UCHI |
| Sertifikasi: | Completed |
| Nomor model: | MT007 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1000 pcs |
|---|---|
| Harga: | dapat dinegosiasikan |
| Kemasan rincian: | Standar |
| Waktu pengiriman: | 5-7 hari |
| Syarat-syarat pembayaran: | T/T, Western Union |
| Menyediakan kemampuan: | 5000 pcs stok |
|
Informasi Detail |
|||
| Kekuatan Dinilai: | 80W Maksimal | Tegangan nominal: | DC24V MAX |
|---|---|---|---|
| Sertifikat: | 3c | Putar kecepatan: | 240 rpm maks |
| Aula: | Tunggal/Ganda | Pengurangan rasio: | 20/39 |
| Nomor tiang magnet: | sepasang | Ukuran rotornya: | 3025/3041 |
| Menyoroti: | Smooth Electric Lifting Desk Motor,silent Electric Lifting Desk Motor,rapid response Electric Lifting Desk Motor |
||
Deskripsi Produk
MT007 Electric Lifting Desk Motor rapid response silent and smooth operation
Electric Lifting Desk Motor is a specialized motor designed to power the height adjustment mechanisms of electric lifting desks. It enables the desk surface to move up and down smoothly and efficiently, allowing users to switch between sitting and standing positions effortlessly.
| voltage | DC24V |
| power | 80W max |
| Rotate Speed | 240RPM max |
| Torsion | 5N.M max |
| Hall | Single/Dual |
| Reduction on Ratio | 39 |
| Magnetic Pole Number | A pair |
| Rotor Size | 3041/3025 |
Product features:
1.Aluminum alloy die-casting housing with two ball bearing inside.
2.Customized wire length and sequence.
3.The motor has a brake at the rear end.
4.Suitable for supporting heavy-duty electric height-adjustable tables.
