BLDC 2418 Brushless Motors High Efficiency and Long Lifespan For Electric Shaver
Detail produk:
| Tempat asal: | Dongguan China |
| Nama merek: | UCHI |
| Sertifikasi: | Completed |
| Nomor model: | BLDC 2418 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1000 pcs |
|---|---|
| Harga: | dapat dinegosiasikan |
| Kemasan rincian: | Standar |
| Waktu pengiriman: | 5-7 hari |
| Syarat-syarat pembayaran: | T/T, Western Union |
| Menyediakan kemampuan: | 5000 pcs stok |
|
Informasi Detail |
|||
| Rentang operasi: | 9V ~ 16V/19 ~ 26V | Nominal: | 12V/24V konstan |
|---|---|---|---|
| Sertifikat: | 3c | Kecepatan tanpa beban r/mnt: | 11900 RPM MAX |
| Arus tanpa beban a: | 0,29 maks | Kecepatan Efisiensi Maksimal: | 8891 RPM MAX |
| Arus dengan efisiensi maksimal: | 0.82A Maks | EFF pada efisiensi maksimal: | 61,4% maks |
| Menyoroti: | Long Lifespan Brushless Motors,High Efficiency Brushless Motors,2418 Brushless Motors |
||
Deskripsi Produk
BLDC 2418 Brushless Motors High Efficiency and Long Lifespan For Electric Shaver
Features
1.High Efficiency and Long Lifespan: BLDC motors are known for their high efficiency, often reaching up to 97%. The BLDC 2418 motor also boasts a long lifespan, with some models capable of continuous operation for up to 15,000 hours.
2.Low Noise and Low EMI: These motors are designed to operate quietly, making them suitable for applications where noise control is important. They also produce low electromagnetic interference (EMI), which is crucial for sensitive electronic environments.

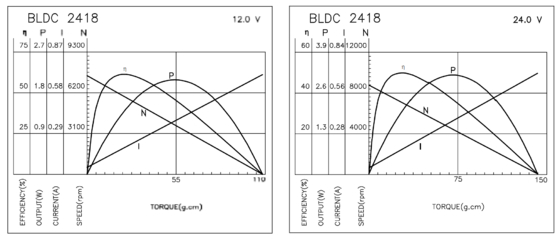

Brushless Motor Technical Data
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||
|
OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | TORQUE | |
| RPM | A | RPM | A | g.cm | % | g.cm | ||||
| BLDC-2418-1 | 9V~16V | 12V CONSTANT | 10250 | 0.29 | 7585 | 0.82 | 73.4 | 5.7 | 57.7 | 282.4 |
| BLDC-2418-2 | 9V~16V | 12V CONSTANT | 7500 | 0.07 | 8863 | 0.194 | 81.5 | 1.2 | 52.8 | 105.0 |
| BLDC-2418-3 | 19V~26V | 12V CONSTANT | 11900 | 0.19 | 8891 | 0.56 | 90.6 | 8.3 | 61.4 | 358.4 |
| BLDC-2418-4 | 19V~26V | 12V CONSTANT | 8700 | 0.04 | 6556 | 0.17 | 32.9 | 2.2 | 54.4 | 144.0 |
TYPICAL APPLICATION:
1.Electric Shaver
2.Home Application
