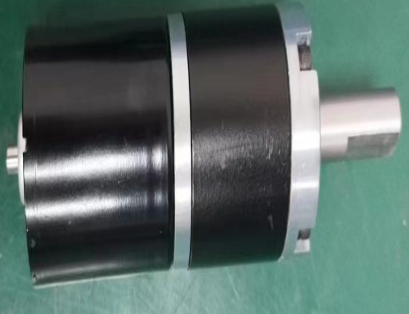

BLDC-3640 Brushless Motors With Reduction Gearbox For Electric Shaver And Vibrator
Detail produk:
| Tempat asal: | Dongguan China |
| Nama merek: | UCHI |
| Sertifikasi: | Completed |
| Nomor model: | BLDC 3640 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1000 pcs |
|---|---|
| Harga: | dapat dinegosiasikan |
| Kemasan rincian: | Standar |
| Waktu pengiriman: | 5-7 hari |
| Syarat-syarat pembayaran: | T/T, Western Union |
| Menyediakan kemampuan: | 5000 pcs stok |
|
Informasi Detail |
|||
| Rentang operasi: | 9V ~ 14V/19V ~ 26V | Nominal: | 12V/24V konstan |
|---|---|---|---|
| Sertifikat: | 3c | Kecepatan tanpa beban r/mnt: | 16020 RPM MAX |
| Arus tanpa beban a: | 0,56max | Kecepatan Efisiensi Maksimal: | 13416 RPM MAX |
| Arus dengan efisiensi maksimal: | 2.35a maks | EFF pada efisiensi maksimal: | 74,6% maks |
| Menyoroti: | Reduction Gearbox Brushless Motor,Electric Shaver Brushless Motor,BLDC-3640 Brushless Motor |
||
Deskripsi Produk

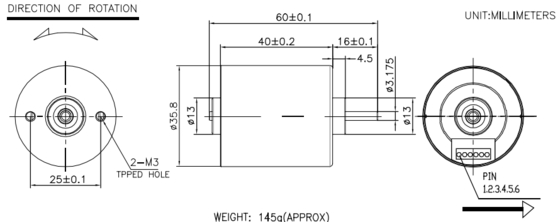

A BLDC-3640 brushless motor is a type of Brushless Direct Current (BLDC) motor. BLDC motors are also known as electronically commutated motors (ECMs). They use permanent magnets and an electronic control circuit to generate rotational motion. The BLDC-3640 specifically refers to a model with a 36mm diameter and a 40mm length.

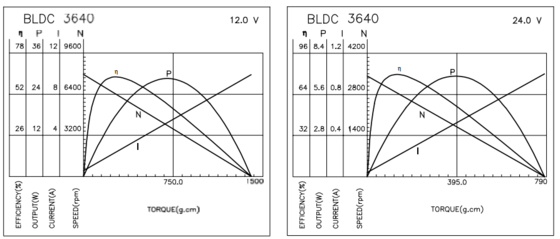

Brushless Motor Technical Data
Typical Application:
1. Electric Shaver
2. Vibrator
3. Home Application
Features:
1.High Efficiency: BLDC motors eliminate brush friction, reducing energy loss and improving power savings. Efficiency can reach 85-90%, significantly higher than traditional brushed motors.
2.Long Lifespan: The absence of brushes prevents wear, extending the motor's lifespan to tens of thousands of hours.
3.High Torque: The BLDC-3640 can provide high torque output, making it suitable for demanding industrial and commercial applications.
