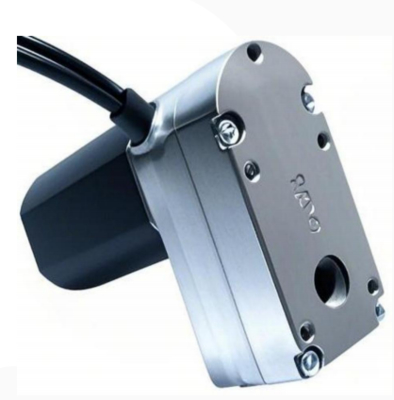

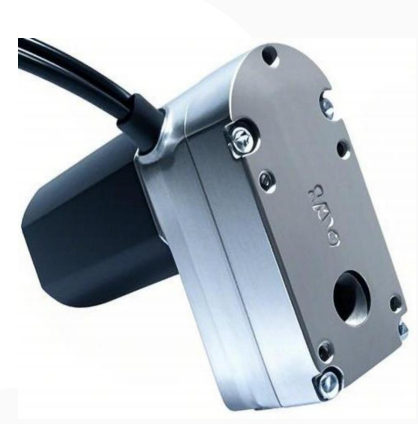

MT010 Electric Lifting Desk Motor With Overload Protection Collision Detection
Detail produk:
| Tempat asal: | Dongguan China |
| Nama merek: | UCHI |
| Sertifikasi: | Completed |
| Nomor model: | MT010 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1000 pcs |
|---|---|
| Harga: | dapat dinegosiasikan |
| Kemasan rincian: | Standar |
| Waktu pengiriman: | 5-7 hari |
| Syarat-syarat pembayaran: | T/T, Western Union |
| Menyediakan kemampuan: | 5000 pcs stok |
|
Informasi Detail |
|||
| Kekuatan Dinilai: | 80W Maksimal | Tegangan nominal: | DC24V |
|---|---|---|---|
| Sertifikat: | 3c | Putar kecepatan: | 180 RPM Max |
| Aula: | Tunggal/Ganda | Pengurangan rasio: | 44 |
| Nomor tiang magnet: | sepasang | Ukuran rotornya: | 3025/3041 |
| Torsi: | 7n.m Max | ||
| Menyoroti: | Collision Detection Lifting Desk Motor,MT010 Lifting Desk Motor,Overload Protection Lifting Desk Motor |
||
Deskripsi Produk
MT010 Electric Lifting Desk Motor With Overload Protection Collision Detection
| Voltage | DC24 | DC24 | DC24 | DC24 |
| Power | 80 W | 60W | 80W | 60W |
| Rotate Speed | 180 RPM | 180RPM | 90RPM | 90RPM |
| Torsion | 4N.M | 2N.M | 7N.M | 3N.M |
| Reduction on Ratio | 32.6 | 32.5 | 65 | 65 |
| Hall | Single/Dual | Single/Dual | Single/Dual | Single/Dual |
| Magnetic Pole Number | A pair | A pair | A pair | A pair |
| Rotor Size | 3041 | 3025 | 3041 | 3025 |
Product features:
1.Aluminum alloy die-casting housing, double worm gear and worm drive.Zinc Alloy Die-Casting Enclosure.
2.Customized wire length and sequence.
3.Horizontal installation inside the hidden table frame.
4.Optional brake at motor tail end.
Safety and Protection
-
Overheat Protection:The MT010 motor includes built-in overheat protection to prevent damage from excessive temperatures.
-
Overload Protection:It also features overload protection, which cuts off the power when the load exceeds the rated capacity, ensuring the motor's longevity.
Design and Compatibility
-
Dual Motor System:The MT010 often uses a dual motor system, with one motor on each side of the desk. This ensures even and synchronized lifting of the desk's legs, providing stability and reliability.
-
Versatile Applications:It is suitable for a wide range of desktop materials and sizes, making it a versatile choice for both home and office environments.
