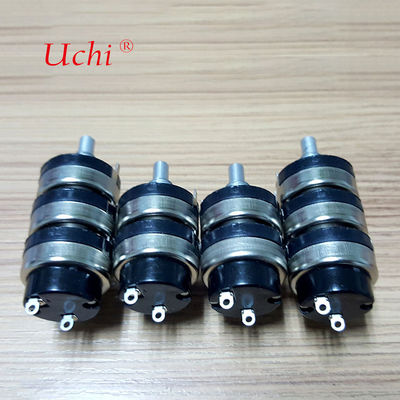

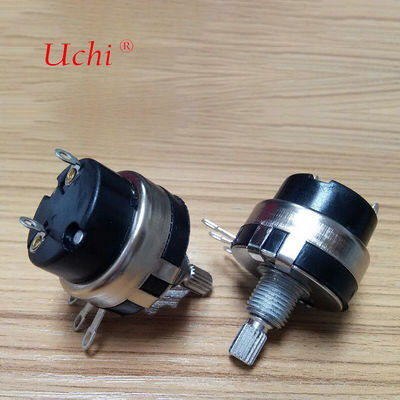

WTH118 Waterproof Improved Precision Potentiometer With Switch
Detail produk:
| Tempat asal: | Dongguan ， Guangdong, Cina |
| Nama merek: | Uchi |
| Sertifikasi: | SMC |
| Nomor model: | WTH118 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 100 pcs |
|---|---|
| Harga: | dapat dinegosiasikan |
| Syarat-syarat pembayaran: | T/T,paypal,Western Union,MoneyGram |
| Menyediakan kemampuan: | 50000000pcs per bulan |
|
Informasi Detail |
|||
| Kisaran resistensi keseluruhan: | 50Ω - 2MΩ (Kesalahan ±20%) | Peringkat kekuatan: | B Lancip 0,5W, Lainnya 0,25W |
|---|---|---|---|
| Resistansi sisa: | Terminal 1-2/2-3 ≤20Ω MAKS | Tegangan operasi maksimal: | Lancip linier BAC 500V, taper lainnya AC 250V |
| Kebisingan slider (Lihat JIS): | ≤47mV maks | Resistensi isolasi: | ≥100MΩ MIN pada DC 500 volt |
| Menahan tegangan (kotak terminal): | 500V, AC (satu menit) | Kekuatan: | 0,05W |
| Sudut rotasi keseluruhan: | 300°±10° | Perjalanan listrik yang efektif: | 230°±3° |
| Beralih sudut: | 50°±10° | Tingkat tahan air: | IP67 |
| Menyoroti: | waterproof precision potentiometer with switch,improved precision potentiometer waterproof,potentiometer with switch waterproof |
||
Deskripsi Produk
- Overall resistance range: 50Ω - 2MΩ (Error ±20%)
- Power rating: B Taper 0.5W, Others 0.25W
- Residual resistance: Terminal 1-2/2-3 ≤20Ω MAX
- Max operation voltage: Linear taper BAC 500V, other tapers AC 250V
- Slider noise (Refer to JIS): ≤47mV MAX
- Insulation resistance: ≥100MΩ MIN at D.C 500 volts
- Withstanding voltage (Terminal-case): 500V, AC (one minute)
| Taper | Test point position | V1-2/V1-3 (%) | V2-3/V1-3 (%) |
|---|---|---|---|
| A | 180° | 10-30% | |
| B | 150° | 40-60% | |
| C | *180° | 10-30% | |
| D | 150° | 2-15% | |
| W | 90±5° | 5-15% | |
| 150° | 40-60% | ||
| 210±5° | 85-95% |
- Overall rotational angle: 300°±10°
- Effective electrical travel: 230°±3°
- Switch angle: 50°±10°
- Waterproof grade: IP67
- Operation torque: 100gf.cm-200gf.cm (rotational speed 60°/1 sec)
- Rotational life: More than 100,000 cycles
- All items meet or exceed JIS C6443 standards
- Operating temperature: -10℃ to +60℃
- Storage temperature: -30℃ to +70℃
