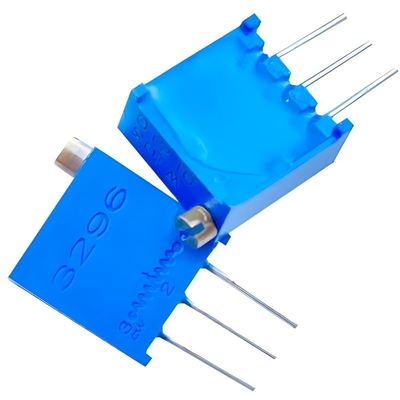

3296w Variable Resistor Top Adjustment Multi-turn Ceramic Fine Adjustment Potentiometer, 10k Precision Potentiometer
Detail produk:
| Tempat asal: | Dongguan ， Guangdong, Cina |
| Nama merek: | Uchi |
| Sertifikasi: | SMC |
| Nomor model: | 3296W |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 100 pcs |
|---|---|
| Harga: | dapat dinegosiasikan |
| Syarat-syarat pembayaran: | T/T,paypal,Western Union,MoneyGram |
| Menyediakan kemampuan: | 50000000pcs per bulan |
|
Informasi Detail |
|||
| Perlawanan: | 10Ω~5MΩ | Spesifikasi: | 3296W\3296Z\3296Y\3296X\3296P |
|---|---|---|---|
| Fitur: | Multi-putaran | Resistansi Terminal: | ≤±1%R atau 2Ω |
| Resistensi isolasi: | ≥ 1GΩ (100V AC) | Kisaran Suhu: | -55°C~+125°C |

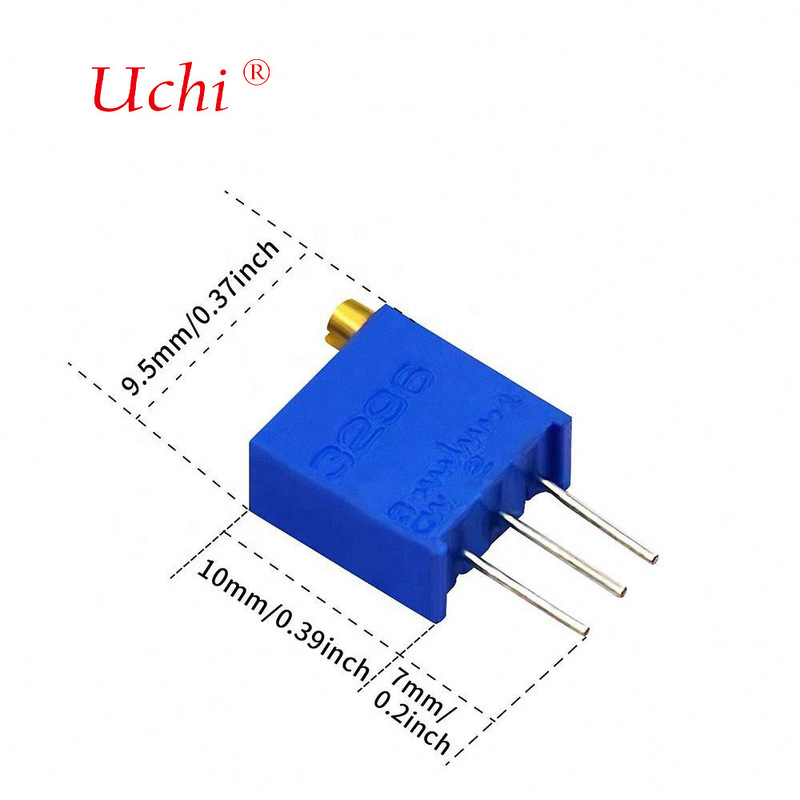

| Toleransi Resistensi: | ± 10% | Ukuran / dimensi: | 10*9.6mm |
| Kekuatan Dinilai: | 0,5W (maks 300V) | TCR: | ±250*10-6/°C |
| Menyoroti: | 10k precision potentiometer with warranty,multi-turn ceramic variable resistor,top adjustment fine potentiometer |
||
Deskripsi Produk
The 3296W is a multi-turn potentiometer with adjustment accuracy of 5% or 10%. With a resistance range of 10Ω to 5MΩ and total mechanical stroke of 28±2 turns, it's one of the most commonly used multi-turn potentiometers. The 3296 series includes various models (3296W, 3296X, 3296P, 3296Y, 3296Z) with different specifications and packaging.
- High accuracy and reliability
- Long service life
- High resolution for precise adjustments
- Suitable for signal gain and linearity adjustment
| Electrical Characteristics | |
|---|---|
| Range of nominal resistance | 10Ω~5MΩ |
| Resistance tolerance | ±10% |
| Terminal resistance | ≤±1%R or 2Ω |
| Contact resistance variation (CRV) | ≤±1%R or 3Ω |
| Insulation resistance | ≥ 1GΩ (100V AC) |
| Withstand voltage | 640V (DC or AC peak value) |
| Effective electrical travel | ≥70% of mechanical travel |
| Environment Characteristics | |
|---|---|
| Rated power | 0.5W (300V max) |
| Temperature range | -55°C~+125°C |
| TCR | ±250×10-6/°C |
| Collision (390m/S2, 4000 times) | ΔR≤±1%R |
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS |
| Physical Characteristics | |
|---|---|
| Total mechanical travel | 28±2 lap |
| Starting torque | ≤25mN.m |
Standard package: 50 pcs/tube (3296W, 3296Y) or 40 pcs/tube (3296X, 3296Z, 3296P)
This potentiometer is used in industrial control, communication equipment, precision instruments, automotive electronics, LCD panels, switching power supplies, and other fields.
We are a factory with many years of production experience, dedicated to providing high-quality products and services. With advanced production equipment and professional R&D team, we can provide sufficient capacity and accept OEM/ODM orders.
Our product quality has been widely recognized, and our after-sales service highly praised. We adhere to "quality first, customer first" philosophy and look forward to your cooperation.
We offer multiple shipping methods including express mail service, DHL Express, UPS, and FedEx for safe and efficient delivery.
We are a factory offering direct pricing with professional technical support.
Samples available upon request after order placement.
We accept OEM/ODM orders with flexible requirements.
Varies by quantity and model, with urgent request accommodation.
Comprehensive 24-hour support for all products.
