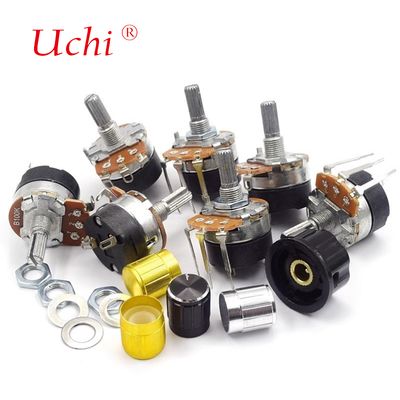

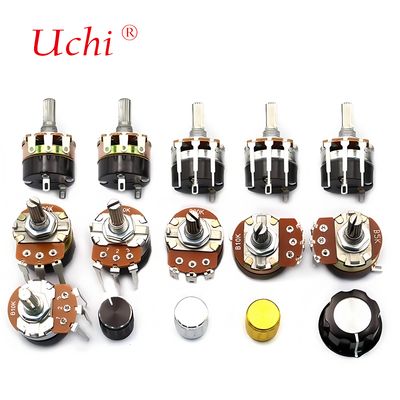

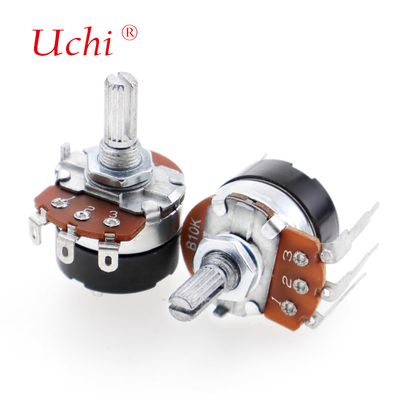

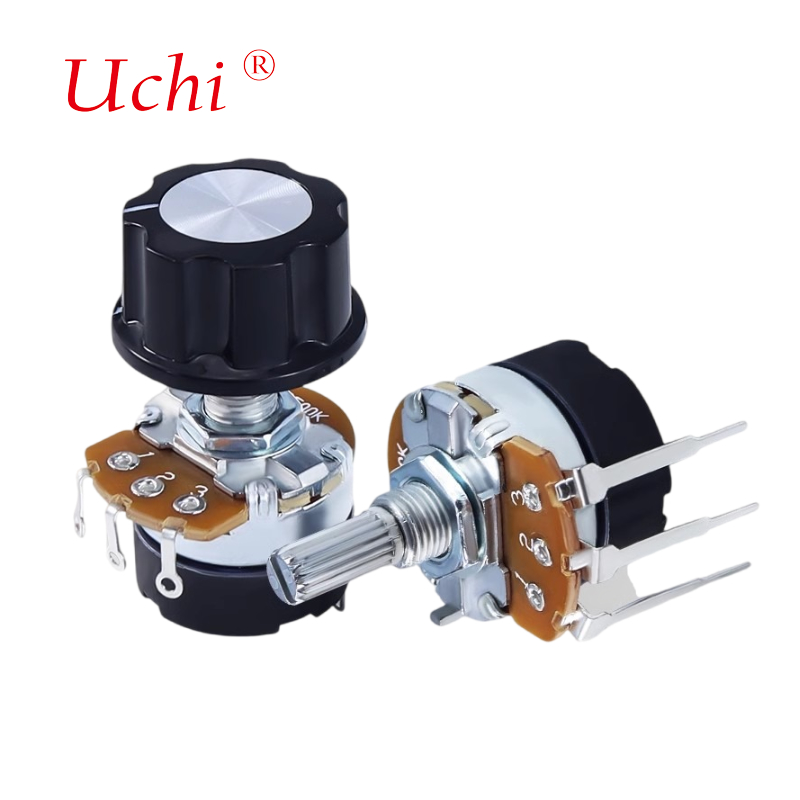

WH138 Resistance Speed Regulator 24mm Carbon Film Rotary Potentiometer
Detail produk:
| Tempat asal: | Dongguan ， Guangdong, Cina |
| Nama merek: | Uchi |
| Sertifikasi: | SMC |
| Nomor model: | WH138 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 100 pcs |
|---|---|
| Harga: | dapat dinegosiasikan |
| Syarat-syarat pembayaran: | T/T,paypal,Western Union,MoneyGram |
| Menyediakan kemampuan: | 50000000pcs per bulan |
|
Informasi Detail |
|||
| Perlawanan: | 1KΩ~2MΩ | Kisaran Suhu: | Kurva B:0,5W Kurva lainnya B:0,25W |
|---|---|---|---|
| Tegangan operasi maksimal: | Kurva B:500V Kurva lainnya B:250V | Hukum Perlawanan: | A,B,C |
| Sudut rotasi total: | 300°±5° | Toleransi Resistensi: | ± 20 (%) |
| Fitur: | Potensiometer film karbon | Izinkan Toleransi Penghentian: | ±20%(1MΩ atau lebih30%) |
| Torsi rotasi: | 2~20 mN.m(20~200gf.cm) | Hidup berputar: | 10.000 siklus |
| Menyoroti: | 24mm carbon film potentiometer,rotary speed regulator potentiometer,WH138 resistance speed controller |
||
Deskripsi Produk
WH138 Resistance Speed Regulator 24mm Carbon Film Rotary Potentiometer
High-quality carbon film rotary potentiometer designed for precise speed regulation in various electronic applications.
Electrical Characteristics
| Parameter | Specification |
|---|---|
| Temperature Range | -10℃~70℃ |
| Rated Power | Curve B: 0.5W Other curve B: 0.25W |
| Max Operation Voltage | Curve B: 500V Other curve B: 250V |
| Resistance Range | 1KΩ~2MΩ |
| Allowable Resistance Tolerance | ±20% (1MΩ or more 30%) |
| Rotational Noise | ≤47mV |
| Terminal Resistance | R≥250KΩ: 0.1%R max 250KΩ>R>10KΩ: 20Ω max 10KΩ≥R: 10Ω max |
| Resistance Law | A, B, C |
| Dielectric | AC500V, 1 minute |
| Insulation Resistance | More than 100MΩ at DC500V |
Mechanical Characteristics
| Parameter | Specification |
|---|---|
| Rotational Torque | 2~20 mN.m (20～200gf.cm) |
| Total Rotational Angle | 300°±5° |
| Rotary Life | 10,000 cycles |
| Shaft Stopper Strength | 6Kgf.cm |
| Soldering | Temperature T≤265℃: time ts5s |
Product Dimensions
Product Applications
Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing.
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
Frequently Asked Questions
Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support.
Could you provide samples?
Samples are available upon request after order placement.
Can your product be customized?
We accept OEM/ODM orders with flexible requirements.
What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible.
Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
