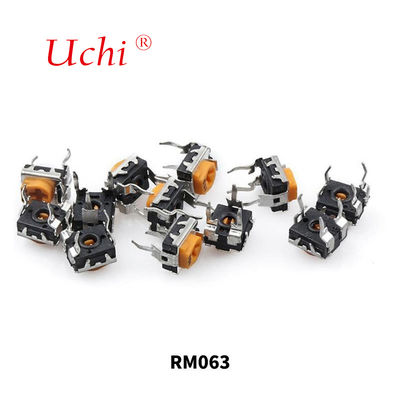

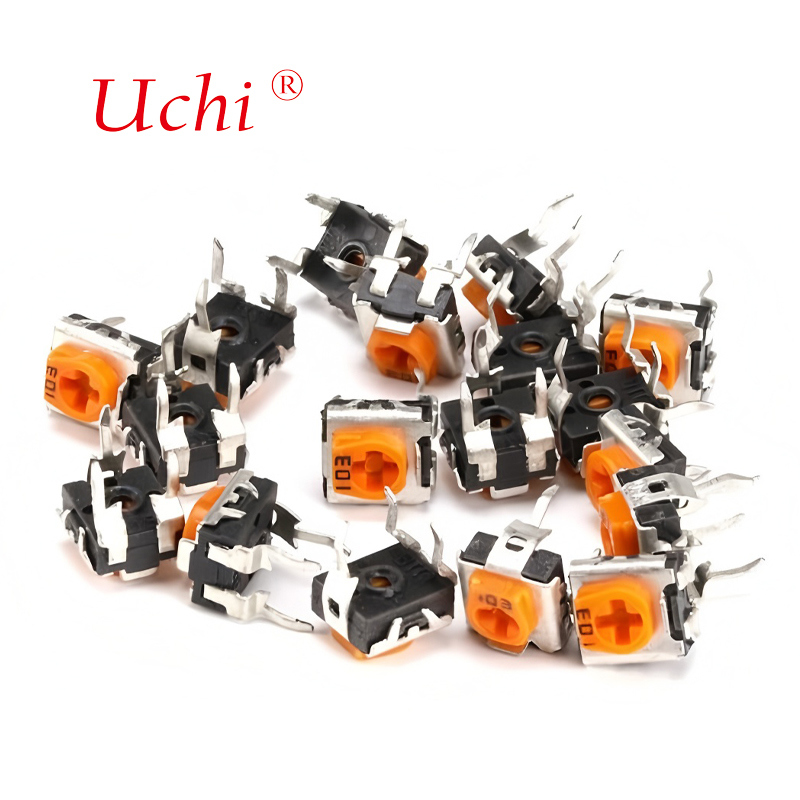

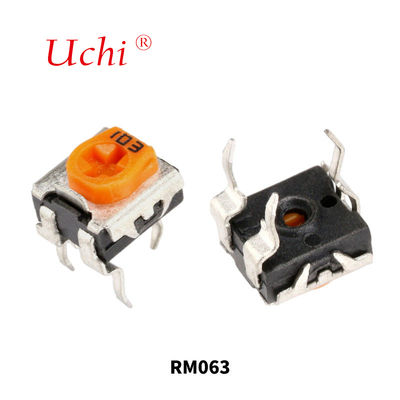

RM063 Yellow Single-turn Carbon Film Trimmer Potentiometer 1m Adjustable Resistor
Detail produk:
| Tempat asal: | Dongguan ， Guangdong, Cina |
| Nama merek: | Uchi |
| Sertifikasi: | SMC |
| Nomor model: | RM063 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 100 pcs |
|---|---|
| Harga: | dapat dinegosiasikan |
| Syarat-syarat pembayaran: | T/T,paypal,Western Union,MoneyGram |
| Menyediakan kemampuan: | 50000000pcs per bulan |
|
Informasi Detail |
|||
| Perlawanan: | 100Ω--1M | Toleransi Resistensi: | 20% |
|---|---|---|---|
| Nilai Daya: | 0.5W | Ukuran / dimensi: | 7*6.5mm |
| Sudut rotasi mekanis: | 235°±5° | Sudut putaran listrik: | 215°±20° |
| Suhu Operasional: | -10C~+70C | Maks. Tegangan Operasi: | 50v |
| Menyoroti: | yellow carbon film potentiometer,single-turn trimmer resistor,1m adjustable potentiometer |
||
Deskripsi Produk
RM063 Yellow Single-turn Carbon Film Trimmer Potentiometer
The RM063 Yellow Single-turn Carbon Film Trimmer Potentiometer is a 1MΩ adjustable resistor with a blue base and white cap. This vertical plug-in carbon film potentiometer features high-temperature vacuum coating technology that adheres carbon tightly to a ceramic rod surface, forming a durable carbon film for precise resistance adjustment.
Key Features
- High accuracy and good stability
- Compact size for space-constrained applications
- Easy manual adjustment capability
- Durable carbon film construction
- Wide resistance range from 100Ω to 1MΩ
Electrical Characteristics
| Parameter | Specification |
|---|---|
| Nominal Resistance | 100Ω~1MΩ |
| Resistance Tolerance | ±10%, ±20%, ±30% (optional) |
| Residual Resistance | Max. 5% of nominal resistance (under 30Ω) |
| Rated Power | 0.1 Watt |
| Operating Voltage | AC50V Max. |
| Insulation Impedance | ≥100MΩ (at 100V AC) |
Mechanical Characteristics
| Parameter | Specification |
|---|---|
| Variable Rotation Angle | 270º (±20º) |
| Rotational Torque | 20~450 gf.cm |
| Stop-end Strength | <0.5 Kgf.cm |
Environmental Characteristics
| Parameter | Specification |
|---|---|
| Operating Temperature | -10°C to +70°C |
| Humidity Resistance | Max. 20% resistance change after 350 hours at 40°C and 90% RH |
Product Dimensions
Application Areas
This precision adjustable potentiometer is widely used in:
- Audio equipment and electronic devices
- Televisions and home appliances
- Measurement and test equipment
- Telecommunication systems
- Automotive electronics
- Power supply and control systems
Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
Frequently Asked Questions
Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support.
Could you provide samples?
Samples are available upon request after order placement.
Can your product be customized?
We accept OEM/ODM orders with flexible requirements.
What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible.
Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
