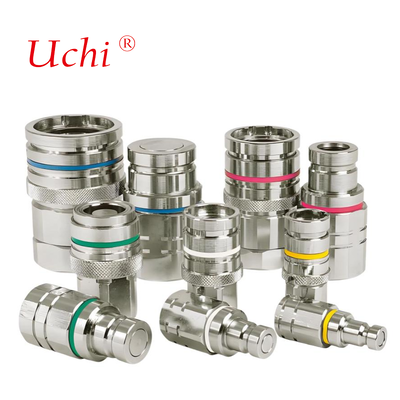

Brass Quick-Connect Fittings Accessories For Cold Plate Cooling Systems
Detail produk:
| Tempat asal: | Dongguan ， Guangdong, Cina |
| Nama merek: | Uchi |
| Sertifikasi: | SMC |
| Nomor model: | fitting sambungan cepat |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 100 buah |
|---|---|
| Harga: | dapat dinegosiasikan |
| Syarat-syarat pembayaran: | T/T,paypal,Western Union,MoneyGram |
| Menyediakan kemampuan: | 50000000pcs per bulan |
|
Informasi Detail |
|||
| Bahan: | Aluminium, baja tahan karat, kuningan, baja karbon, titanium... | Presisi: | ±0,002 ~ ±0,005mm |
|---|---|---|---|
| Sertifikasi: | ISO 9001,ROSH,CE,ISO16949 | Jenis pemesinan: | Pembubutan CNC, Penggilingan CNC, Pengeboran CNC, dll. |
| Permukaan: | Anodized, dipoles | Jenis: | Broaching, PENGEBORAN, Etsa / Pemesinan Kimia, Laser... |
| Menyoroti: | Brass quick-connect fittings for cooling systems,Cold plate cooling system accessories,Liquid cooling plate brass fittings |
||
Deskripsi Produk
Brass Quick-Connect Fittings for Cold Plate Cooling Systems
High-performance brass quick-connect fittings and accessories designed specifically for cold plate cooling systems, offering reliable connections and efficient thermal management.
Manufacturing Specifications
Processing Capabilities
CNC Turning, CNC Milling
Available Materials
- Aluminum: 2000 series, 6000 series, 7075, 5052, etc.
- Stainless steel: SUS303, SUS304, SS316, SS316L, 17-4PH, etc.
- Titanium: Grade F1-F5
- Brass: 260, C360, H59, H60, H62, H63, H65, H68, H70, etc.
- Steel: 1214L/1215/1045/4140/SCM440/40CrMo, etc.
Surface Treatments
Anodized, Bead Blasted, Silk Screen, PVD Plating, Zinc/Nickel/Chrome/Titanium Plating, Brushing, Painting, Powder Coated, Passivation, Electrophoresis, Electro Polishing, Knurl, Laser/Etch/Engrave etc.
Tolerance
±0.002 ~ ±0.005mm
Surface Roughness
Minimum Ra 0.1~3.2
Material Selection Guide for Quick Disconnect Fittings
| Application Scenario | Recommended Main Body Material | Recommended Seal Material | Core Advantages | Selection Notes |
|---|---|---|---|---|
| Data center server liquid-cooled plates | Brass / 6061 Aluminum Alloy | Nitrile Butadiene Rubber (NBR) | Moderate cost, excellent machinability, compatible with water-glycol coolant; easy assembly and disassembly | System working pressure ≤ 3.0 MPa; avoid long-term high-temperature (＞100℃) conditions; regular seal inspection |
| New energy vehicle power battery liquid cooling circuit | 304/316 Stainless Steel | Fluororubber (FKM/Viton) | High pressure resistance (3.0-6.0 MPa), vibration and impact resistance; wide temperature tolerance | Comply with ISO 16028 automotive standards; avoid contact with strong corrosive media |
| Outdoor charging pile liquid cooling system | 316 Stainless Steel / Glass Fiber Reinforced PA66 | Fluororubber (FKM/Viton) | 316 stainless steel resists outdoor corrosion; engineering plastic offers light weight and insulation | Meet IP67 or higher protection level; use Silicone Rubber (VMQ) seals in low-temperature areas |
| High-temperature liquid cooling for industrial equipment | 316 Stainless Steel | Perfluoroelastomer (FFKM) | Ultra-high temperature resistance (≤200℃), compatible with strong corrosive coolants | High cost, suitable for high-end industrial scenarios; minimize frequent plugging/unplugging |
| Portable liquid cooling for consumer electronics | Polyoxymethylene (POM) / Aluminum Alloy | Silicone Rubber (VMQ) | Light weight, excellent insulation; resistance to extreme low temperature | Only for low-pressure (≤1.0 MPa) conditions; avoid contact with oil-based coolants |
Manufacturing Capabilities
Our mold workshop features advanced equipment including:
- 22 sets of electric discharge machines (EDM), including 2 MAKINO mirror EDM machines
- 9 wire-cut EDM machines (low-speed), including 3 Seibu and 1 Sodick machines from Japan
- 7 spark erosion machines, 10 grinding machines, 2 milling machines, and 1 lathe
Equipment Specifications
- Table size: 500×350 mm
- Rapid traverse speed: 5000 mm/min
- Maximum workpiece weight: 500 kg
- Maximum electrode weight: 50 kg
Precision Machining Technology
Utilizing SuperSpark4 and IES (Intelligent Expert System) technologies for advanced adaptive power supply and jump control to stabilize the EDM process and enhance machining precision. Equipped with ultra-surface and ultra-edge generator technologies for excellent surface finish and metallurgical quality.
Liquid Cooling System Technology
High-power liquid cooling systems require heat sinks capable of rapid heat absorption. Leveraging the high specific heat capacity of liquids, our systems transfer large amounts of heat through liquid flow, capable of dissipating heat ranging from several hundred watts to over one kilowatt.
Liquid Cold Plate Varieties
- Buried-tube Liquid Cold Plate: Fabricated by grooving plates, burying and welding copper tubes inside, then hermetically sealing via welding. Ensures reliable liquid tightness, operational safety, and high flatness for excellent thermal contact.
- Inserted-tube Liquid Cold Plate: Manufactured by embedding copper tubes onto aluminum plate surfaces using welding or bonding processes, with strict flatness control for minimal thermal resistance.
- Channel-type Liquid Cold Plate: Internal flow channels formed on copper or aluminum substrates through drilling, extrusion, and precision machining, sealed via friction welding or high-temperature brazing.
- Liquid Cooling Block: For high-power chip heat dissipation with internal flow channels created through skiving fin technology to maximize heat exchange surface area.
Product Applications
Quality Assurance
We maintain rigorous quality standards with comprehensive testing equipment including:
- 1 Coordinate Measuring Machine
- 1 projector instrument
- 2 water high pressure testing machines
- 4 thermal resistance testing machines
- 2 liquid leakage testing machines
Customer Service Commitment
- Prompt response to all inquiries
- Competitive pricing with guaranteed quality
- Efficient production scheduling
- Optimal transportation solutions
- Comprehensive technical support
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.
Have you exported goods before and to which regions?
60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.
How many employees do you have?
Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.
Can you provide samples if we agree with the design?
Yes, we provide samples for confirmation before mass production, along with technical drawings if required.
What packing methods do you use?
Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.
Do you provide technical support for product issues?
All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
